SmartAir Quality
-
Metal filter remove large particles, small insects & pollens.
-
Pre-Filter efficiency up to 90%, filters particles such as mold & spores.
-
HEPA filter H11 grade efficiency up to 95%, filters such as virus.
-
Carbon activated filter to absorb formaldehyde, benzene, radon & harmful chemical.
-
Silver ion filter, refrain and kill bacteria’s breed in the air, catalyzing air to generate O3 to sterilize and purify the air.
SPECIFICATION
| Model | Voltage | Speed | Power (W) | Air Volume (m³/h) | Static Pressure (Pa) | Duct Diameter (Φmm) | Noise (dB) |
| AQ-150 | 220V/50Hz | H | 53 | 160 | 192 | 100 | 31 |
| 120V/60Hz | L | 44 | 120 | 170 | |||
| AQ-350 | 220V/50Hz | H | 88 | 350 | 270 | 150 | 42 |
| 120V/60Hz | L | 78 | 290 | 250 |

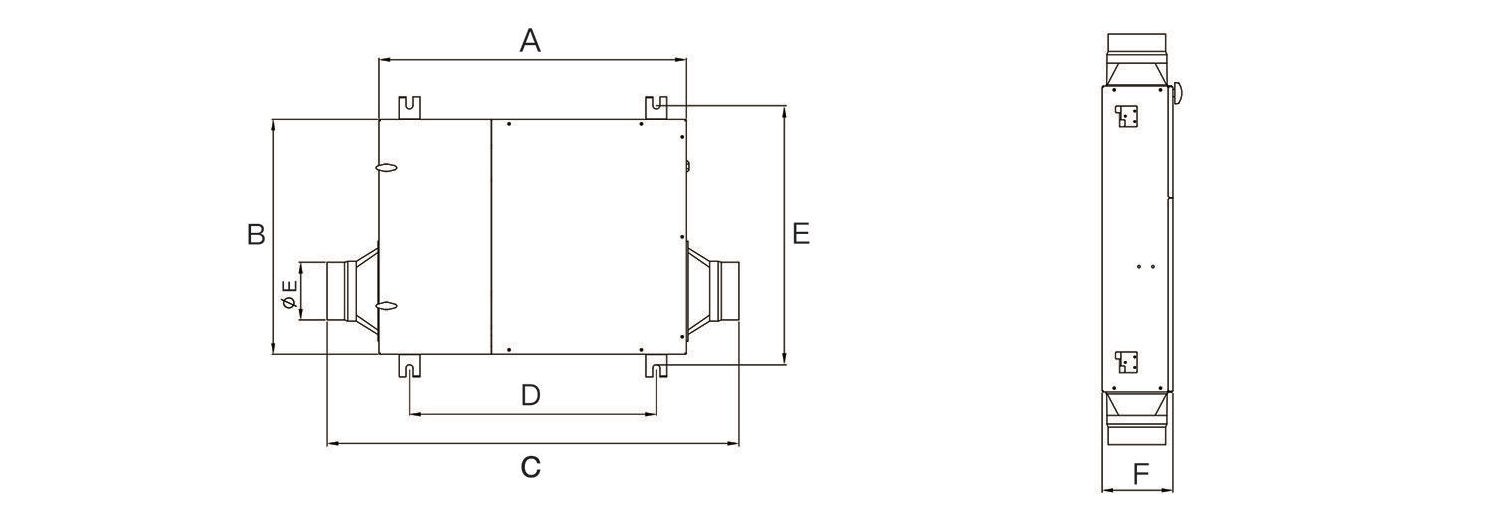

DIMENSIONS (mm)
| Model | A | B | C | D | E | F | ΦE |
|---|---|---|---|---|---|---|---|
| AQ-150 | 523 | 400 | 701 | 420 | 447 | 121 | 98 |
| AQ-350 | 523 | 400 | 673 | 420 | 447 | 196 | 146 |
