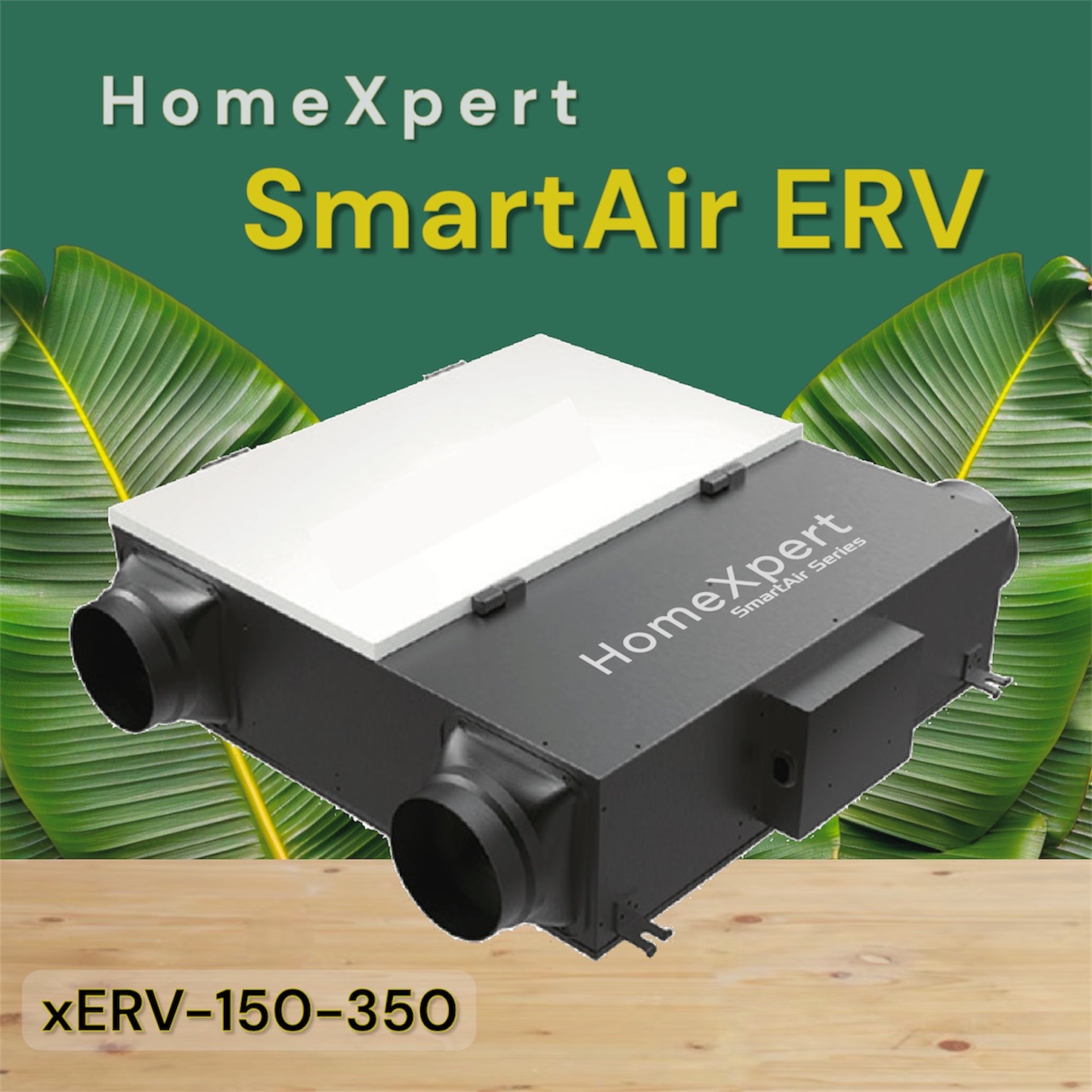

SmartAir ERV
-

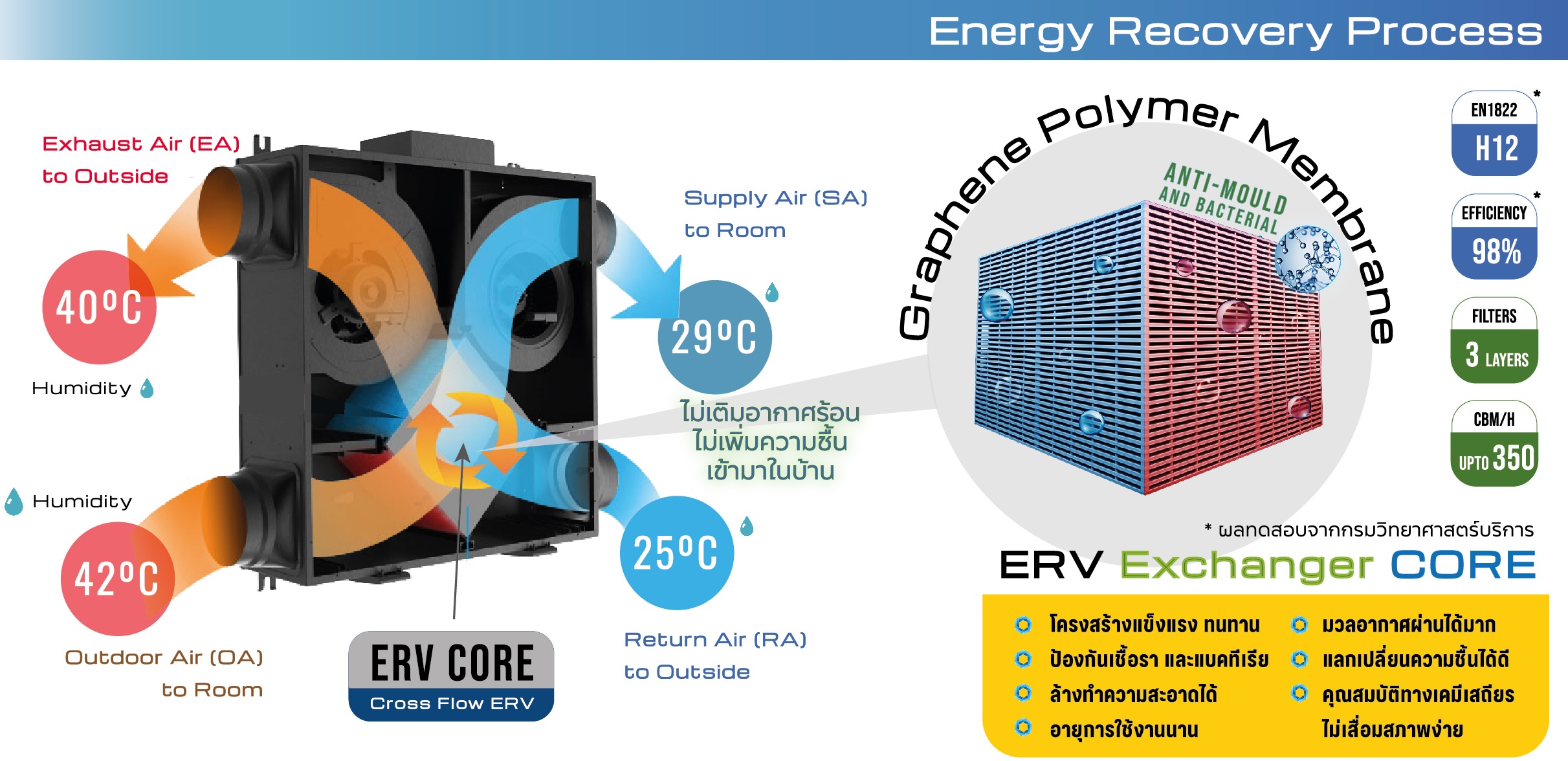

Heat exchanger rate with up to 90%.
-
Internal acoustic cotton to reduce noise level.
-
Low-consumption motor.
-
Centrifugal forward curved impeller.
-
Galvanized sheet steel body.
-
3 nozzles Φ100 mm / Φ150 mm / Φ200 mm.

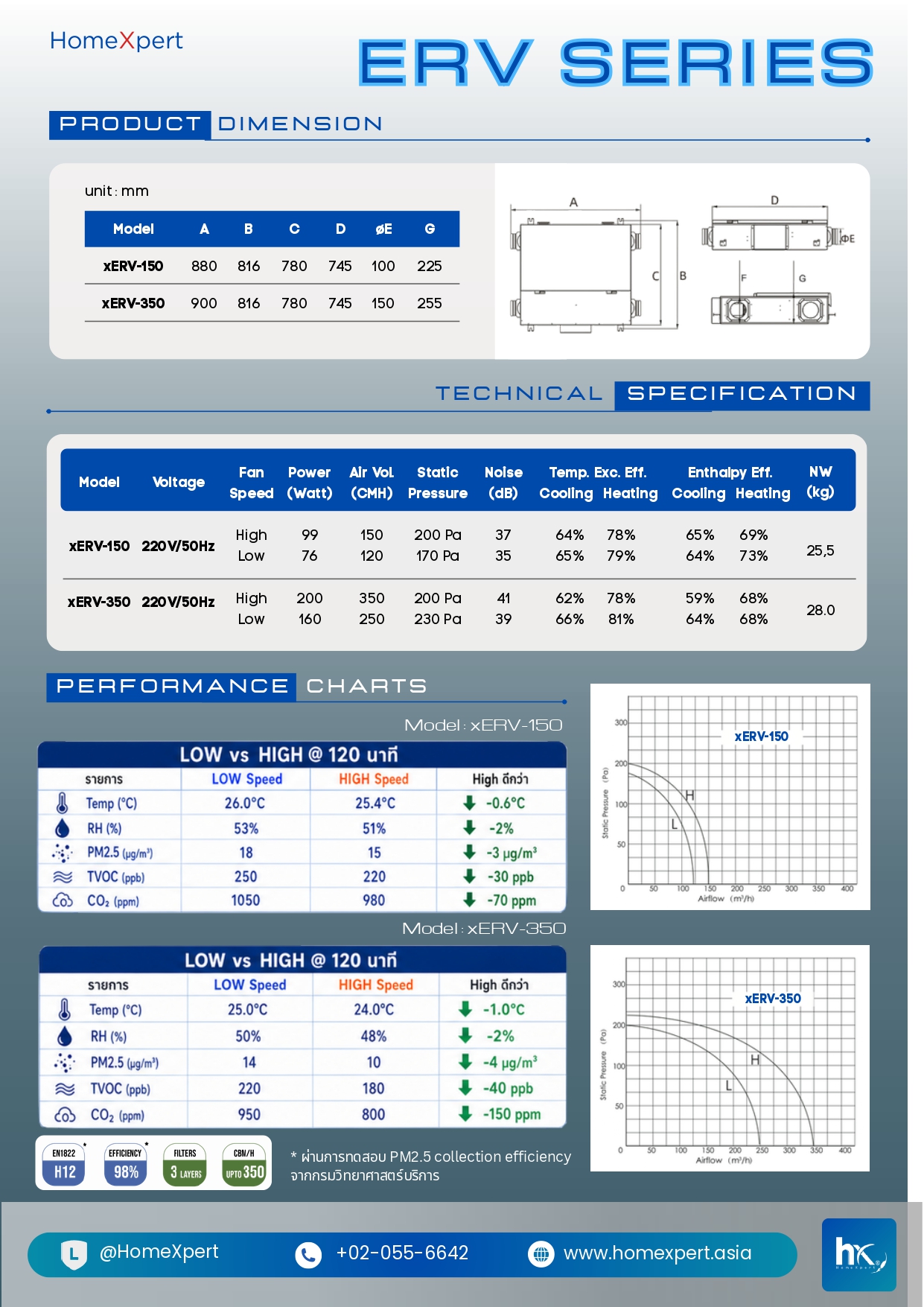

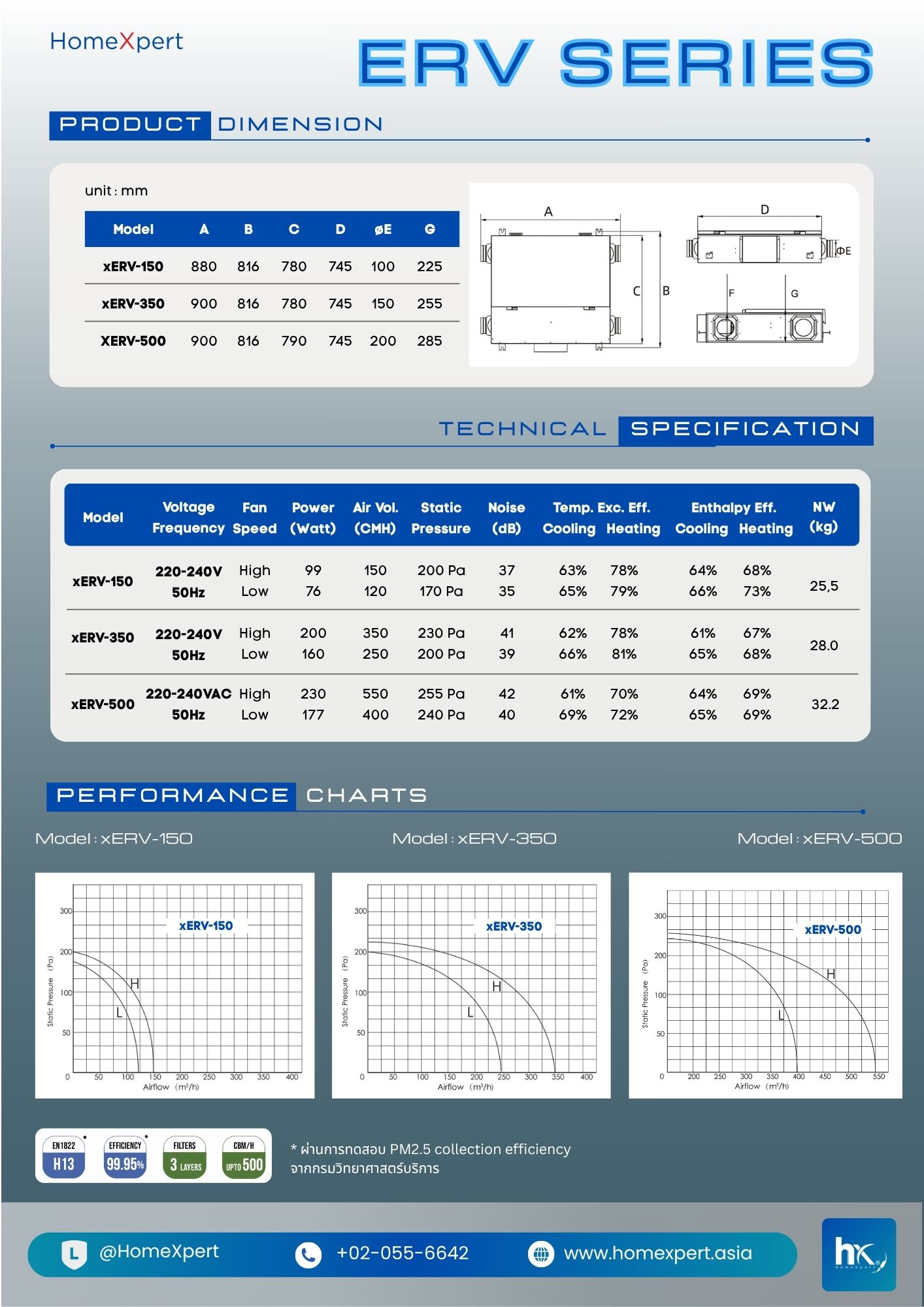

SPECIFICATION
| Model | Voltage | Speed | Power (W) | Air Volume (m³/h) | Static Pressure (Pa) | Noise (dB) |
| xERV-150 | 220V/50Hz | H | 99 | 150 | 200 | 38 |
| 120V/60Hz | L | 76 | 100 | 170 | 36 | |
| xERV-350 | 220V/50Hz | H | 200 | 350 | 230 | 42 |
| 120V/60Hz | L | 160 | 250 | 200 | 40 |

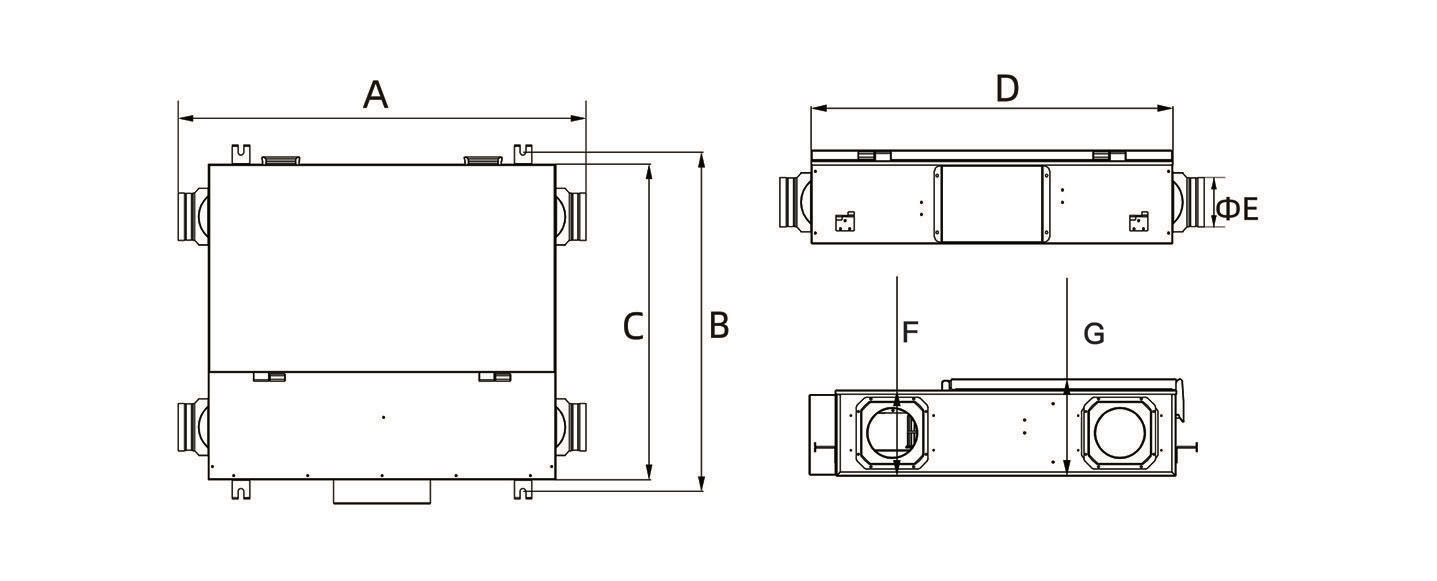

DIMENSIONS (mm)
| Model | A | B | C | D | ΦE | F | G |
|---|---|---|---|---|---|---|---|
| xERV-150 | 824 | 752 | 704 | 702.8 | 96 | 160 | 181 |
| xERV-350 | 853 | 752 | 704 | 702.8 | 146 | 196 | 217 |
